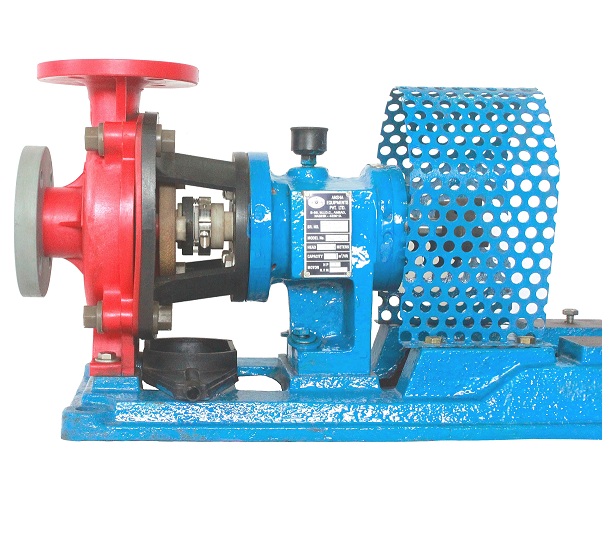

The Horizontal pumps manufactured are of centrifugal back pull-out, single stage, centerline discharge, end-suction, injection molded constructions in Polypropylene or PVDF for HCL, HF, and H2SO4 etc. The Impeller is fixed on the shaft threading and is provided with either ceramic sleeve, extensions in Hastelloy-C, Glass filled Teflon, or Alloy-20 etc, as per the need of the chemical.
A positive and reliable shaft sealing is provided to ensure that the liquid does not enter in between the shaft and the sleeve ensuring no corrosion of non wetted parts. The pumps are with Grafoil gland packing or an appropriate Mechanical seal.
The Bearing Block Adaptor a connecting piece between volute casing and bearing block is a separate sturdy piece and is made of Glass filled Polypropylene to avoid effect of the corrosion due to liquid leakage through the glands or atmospheric corrosion.
| PCP1 | PCP2 |
| Dimensions - 24*12*12 inch (LWH) with electric motor and base plate. Motor - 1HP / 2HP motor. (3 phase, 415 Volts , 2900/1440 RPM, 50 Hz.) | Dimensions - 26*14*14 inch (LWH) with electric motor and base plate. Motor - 2HP / 3HP motor. (3 phase, 415 Volts , 2900/1440 RPM, 50 Hz.) |
| Head upto 12 m (40 ft) Suction Lift upto 2 m(6.5 ft) Capacity upto 12 m3/hr Maximum Working Pressure 1.2 Kg/cm2 for Polypropylene and 4Kg/cm2 for PVDF | Head upto 23 m (75.5 ft) Suction Lift upto 3 m(10 ft) Capacity upto 15 m3/hr Maximum Working Pressure 2 Kg/cm2 for Polypropylene and 6Kg/cm2 for PVDF |
| PCP3 | PCP4 |
| Dimensions - 36*16*16 inch (LWH) with electric motor and base plate. Motor - 5HP / 7.5HP motor. (3 phase, 415 Volts , 2900RPM, 50 Hz.) | Dimensions - 42*18*18 inch (L W H) with electric motor and base plate.. Motor – 7.5HP /10HP motor. (3 phase, 415 Volts , 2900RPM, 50 Hz.) |
| Head upto 34.5 m (113 ft) Suction Lift upto 3 m(10 ft) Capacity upto 28 m3/hr Maximum Working Pressure 3.5Kg/cm2 for Polypropylene and 9Kg/cm2 for PVDF | Head upto 40 m (130 ft) Suction Lift upto 3 m(10 ft) Capacity upto 36 m3/hr Maximum Working Pressure 4 Kg/cm2 for Polypropylene and 11 Kg/cm2 for PVDF |
Specifications and features –
Glass filled virgin Polypropylene or PVDF
1HP to 10HP motor. (3 phase, 415 Volts , 2900/1440 RPM, 50 Hz.)
Head upto 40 m (130 ft)
Suction Lift upto 3 m (10 ft)
Capacity upto 36 m3/hr
Viscosity up to 2
Maximum Working Pressure : 4 Kg/cm2 for Polypropylene and 11 Kg/cm2 for PVDF.
Maximum Temperature : 65 °C for Polypropylene and 120 °C for PVDF.
SS Shaft.
TC / PTFE Mechanical Seal.
SKF ZZ Bearings.
Impeller Type : Open, Semi-open (dynamically balanced impeller).
Impeller Locking Mechanism - restrict catastrophic damage in case of reverse rotation.
Stepped ceramic sleeve- ensure sealing at the impeller rear side and accurate alignment of rotary and stationary faces.
Viton O Rings for leak proof joints.
Lovejoy coupling for maximum durability.
